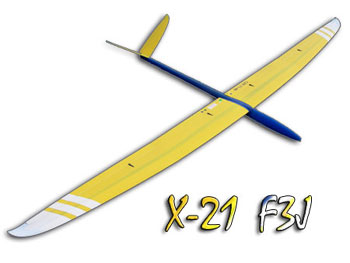

Model made for flying in the F3B, F3F and F3J
categories. The model is made in fullcarbon version, which can
withstand more stress. The F3J version of the model is lighter. The
flying performance suits beginner F3x pilots also.
|
|
|
|
 |
|
Basic
properties
|
| Category: |
F3J,
F3F, F3B |
| Wing
span: |
3200 mm |
| Weight: |
from
2100g as. F3J |
| Wing
area: |
60,4
dm2 |
| Tailplane
area: |
6
dm2 |
|
|
Detailed
Parameters...
|
|
Drawing...
|
|
Basic
setting model...
|
|
Pictures
model...
|
|
|
Detailed Parameters:
|
| Category: |
F3B,
F3F, F3J |
| Conception: |
Two
part wing, V-tail |
|
Wing
span: |
3200
mm |
|
Length: |
1460
mm |
|
Wing
area: |
60,4
dm2 |
|
Elevator
area: |
6,2
dm2 |
|
Wing
airfoil: |
MH
32 mod |
|
Elevator
airfoil: |
SD
8025 |
|
Weight: |
from
2100 g prov F3J |
|
Ballast: |
1600
g |
|
Maximum
servo width: |
wing: 13
mm, fuselage: 15 mm |
| Construction: |
|
|
Wing |
glass-balsa-glass, carbon-herex-glass, carbon-herex-carbon |
|
Spar |
UMS
Carbon |
|
Tailplane |
glass-balsa-glass |
|
Fuselage |
carbon-glass |
|
|
back
up
|
|
|
Drawing:
|
|
|
|
back
up
|
|
|
Basic setting model:
|
|
This is only the recommended
setup, the pilot has to fine-fune it depending on his own
style. The deviations of the control surfaces are shown on the
pictures
|
Flight task - parameter
|
Value - neutral
settings |
|
Center of
gravity
|
From
the leading edge 101-103 mm
|
|
Towhook
|
|
|
Start
|
Flap:
|
+12
mm
|
|
Ailreon:
|
+3
mm
|
|
Elevator:
|
0
mm
|
|
Task A
|
Flap:
|
+
2 mm
|
|
Ailreon:
|
in
the same line as flaps
|
|
Elevator:
|
-
0,5
mm
|
|
Task B
|
Flap:
|
0
mm
|
|
Ailreon:
|
0
mm
|
|
Elevator:
|
- 1
mm
|
|
Task
C
|
Flap:
|
-2
mm
|
|
Ailreon:
|
in
the same line as flaps
|
|
Elevator:
|
-1
mm
|
|
Butterfly:
|
Flap:
|
Maximum
down (50-60 mm)
|
|
Ailreon:
|
-5
mm
|
|
Elevator:
|
cca
-3 mm
|
Setting of deviations in different flight
phases. You can download the setting in full size here
|
|
